  LSPC Logo  Version 6.10
The World's Leading Professional Laser Safety Calculation Software
Major New Release - Now Handles Multiple Wavelengths!
About LaserSafe PC

    This is a must for organisations making frequent use of Lasers, Fibre Optics or LEDs and students through to professionals wishing to learn more about laser safety.  An Innovation in Laser Safety Analysis, LaserSafe PC is the programme which vastly simplifies the process of establishing the safety or otherwise of Laser situations.  It is maintained and supported by the highest authorities.  It covers all Laser situations for laboratories, industry, display and other organisations.  With nearly 30 years of tried and proven experience behind it, this is software you can depend on.

    The latest features are a the ability to calculate multiple wavelengths, simultaneously.  This allows calculations for systems emitting a variety of wavelengths from simple harmonic generators to supercontinuum lasers.  Additionally, there is the inclusion of all the latest Standard releases.

    With Assistant - the graphical inline interactive aid section, you have help every step of the way!  Assistant is an in-depth guide to every aspect of the calculations - from entry through to detailed explanations of the results, including the mathematics involved in deriving them and full definitions of terms.  Assistant's simple but accurate and concise graphics help in the visualisation of complex concepts.

Fully compliant for standards with IEC/EN 60825-1 : 2014+A11 : 2021, ANSI Z136.1 - 2022 and CDRH 21 CFR § 1040.10.
Fully compliant for safety spectacles with EN 207 : 2017 and EN 208 : 2009.
Enables those with little expertise to quickly assess Laser situations for safety.
Greatly simplifies and speeds up the process of safety analysis for those with expertise.
Enables speedy evaluation of how to rectify an unsafe situation.
Takes the tedium out of calculations which involve a lot of mathematics, searching through tables and applying correction factors.
Enables basic laser product classification.
Guides the user to the recommended Laser Safety Signage.
Is capable of multiple wavelength calculations.
Features advanced reporting capability.
LaserSafe PC has been developed for experimentation use and as a training exercise for University students.
Currently being used by major academic, medical, military and commercial institutions, nationally and internationally for assessment of laser safety related situations.
Assistant  is designed to help and inform you every step of the way.
An indispensable tool for anyone using powerful lasers and other high brightness sources.
Still the de facto standard software for Laser Safety.
Automatic updates from the web.
Runs on Windows Vista, 7, 8, 10 and 11.


Key Features
 Laser Warning Sign

Easy to use.
Calculation from 180nm-1mm & all time domains.
Calculates Multiple Wavelengths simultaneously.
Calculation of MPEs for eye and skin exposure.
Calculation of AELs for all classes.
Extended Sources included for MPE & AEL calculations.
Scanning Beam Calculations.
Beam Shape Selection - Flat-Top or Gaussian.
Gaussian Diameter Selection - 1/e, 1/e², d₉₅ and FWHM.
Converging / Focusing Beam Input option including M2.
Option for non diffraction limited calculations (non-real world!).
Quick visual indication of safety conditions.
Detailed results on calculations.
Pulse Summing analysis.
MPE, AEL
and Classification Parameter lookup tables.
c, k and t correction factor results on calculations.
Automatic trial Classification.
L, LB and RB safety spectacle numbers determined.
Classification Apertures for EN 60825-1 and Z136.1.
N.O.H.D. (Nominal Optical Hazard Distance) Calculation.
"Extended N.O.H.D." Calculation (uses Classification Aperture).
Print or Save option for all calculation results.
Save Calculation Entries as .lsf and Results as .txt or .csv files.
Powerful Reporting capability.
Report Files saved as .xlsx format.
dBm and Joule input option for Fibre Optics.
lm (lumen) as well as cd input option for visible LEDs.
Easy to use menu options.
Handy Lens Calculator for Point Source Beams.
Safety signage for equipment and enclosures.
Graphical  Assistant  to help you every step of the way.
In line help at all input & calculation stages.
Useful Notes for laser users and Safety Officers.
Conforms to latest releases of EN 60825-1 & 2, Z136.1, CDRH, EN207 & EN208.
Instant re-calculation from Standard to Standard.
1 year free software updates (includes any standards changes).
Support by e-mail or phone.
All software packages are Personalised.

New Features

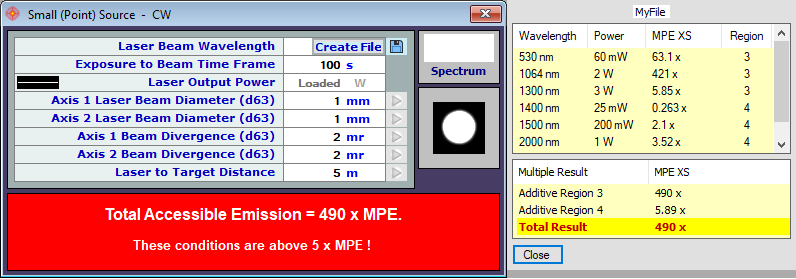

      Calculates Multiple Wavelengths Simultaneously
  Emission Sources:

 Lasers - Intra-Beam exposure     Small (point) Sources   Gaussian or Flat Top
Profiles
 Large (extended) Sources
 Fibre Optics  Single mode or Multi mode (Step & Graded Index)
 Diffuse Reflection Sources  Reflectance or Measured Value Inputs
 Scanning Beam Sources  Includes Waveform Selection
 LEDs   ( to IEC/EN 60825 : 2001 )  Includes built in CIE Luminosity Curve
 Multiple Wavelength Calculations     For all the above Sources.
  Operation Mode:

 CW     Continuous Wave
 Pulse Train  Continuously Repetitive Pulse Output
 Single Pulse     Single Pulse Operation
  Results:

 Quick     All results colour coded for rapid appraisal of hazard
 Details  Limiting MPEs
 Eye & Skin MPE Excess
 Accessible Emissions
 Classification (& Hazard Levels)
 NOHDs
 Safety Spectacle Results
 Miscellaneous Useful Results
 IEC and ANSI "Conversion Bubbles".
 Information     Correction factors  (C1 - C7, CA, CB, CC, CE, CP, Cg, Kλ, k1, k2)
 Time breaks  (T1 & T2)
 Pulse summing
 Angular Subtense & Acceptance Angles
 LB Number Correction factors + Pulse Summing
 Classification     AELs  (Classes 1 to 3B, I - IIIb)
 Conditions 1, 2 or 3 Calculation Details
 Hazard Levels     AELs  (Classes 1 to 3B) for Fibre Optics
 Conditions 1-3 Calculation Details
 Safety Labels     Signage for equipment and enclosures.
 Signage shown for calculated Product Class.
  MPE & AEL Lookup Tables:

 AELs  For all Classes and Standards
 MPEs  Ocular & Skin
 Correction Factors     Factors for all Standards
 Time Breaks  For all Standards
 Classification Conditions     Apertures & Measurement Distances
  Report Maker:

 Templates       Create custom templates for general notes and required
 input / output data to suit individual needs
 Reports Set templates in the reports and instantly import all the data at the click of a button.  No more copy / paste!
  Miscellaneous:

 Files  Save IDs and Notes with the input data
 Notes  Notes on Safety Issues and Result Interpretations
 Colour Help   Shows the approximate colour of visible wavelengths with Photopic and Scotopic Efficiency Values
 Lens Calculator   Calculates the effect of lenses on diverging and converging laser beams - and more

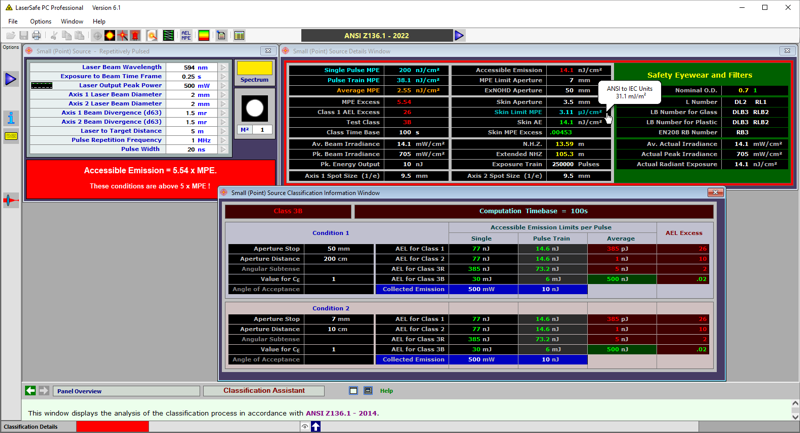

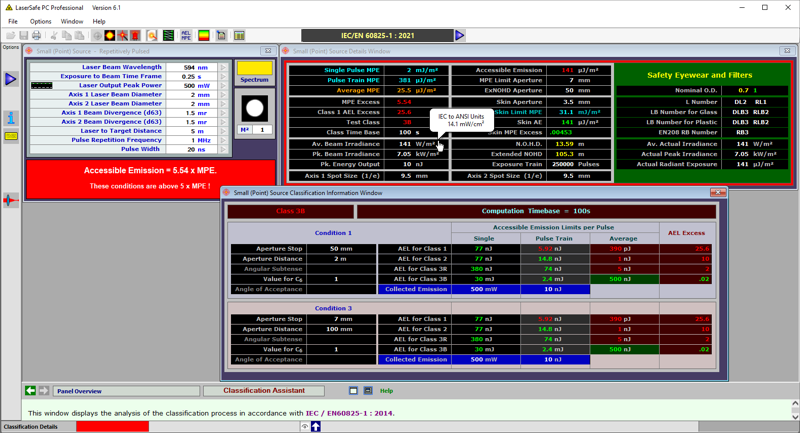

Example of Small Source (Intra-beam) viewing input screen with repetitively pulsed source to EN60825 Example of Small Source (Intra-beam) viewing input screen with repetitively pulsed source to EN60825 Example of Small Source (Intra-beam) viewing input screen with repetitively pulsed source to Z136

Demonstration Version

This is a fully functional version of the version 6.1 software except that it will only calculate for 996nm
and  Assistant  does not contain the full features.

Download Here


LaserSafe PC is available from Xtiana Ltd and distributors worldwide.
